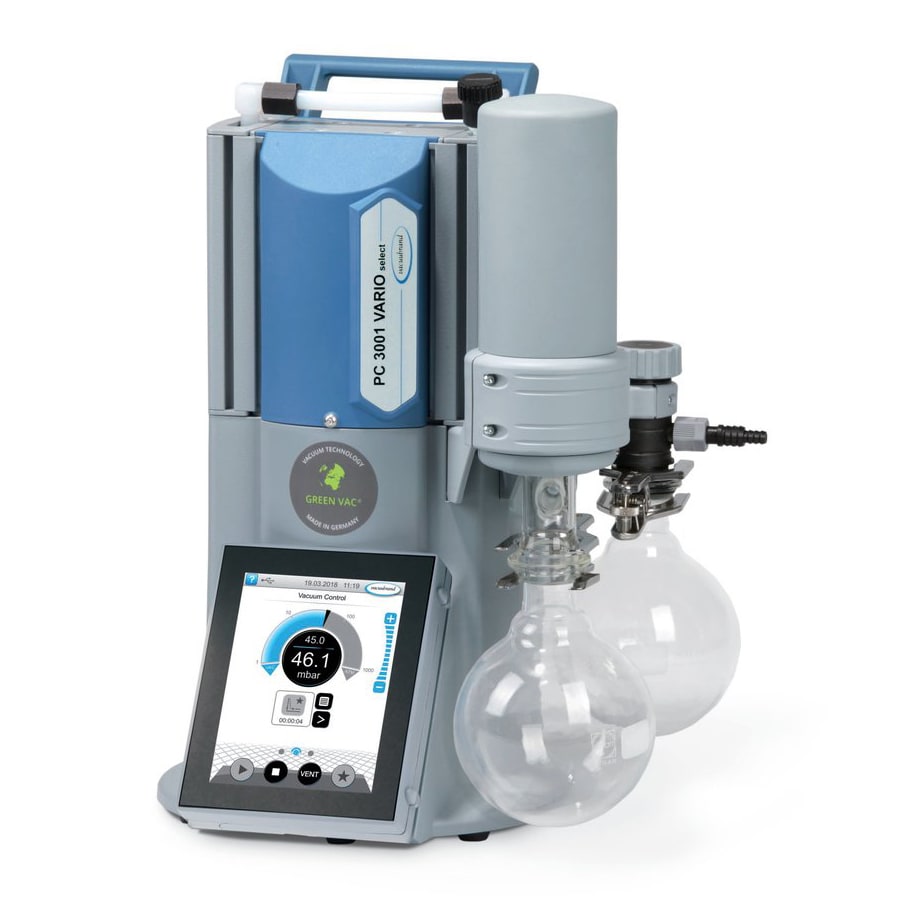

Vacuubrand 20700203 100-120V/200 PC 3001 Vario Select Pump
The PC 3001 VARIO select pumping unit has precise controls for the vacuum level and is suitable for even high boiling point solvents
Price
Availability
Quantity
1
The PC 3001 VARIO select pumping unit has precise controls for the vacuum level and is suitable for even high boiling point solvents. The integrated VACUU SELECT controller provides an easy‐to‐use, application based interface that covers all common lab applications. This controller uses manual set‐point‐control for simple processes, to run fully automated distillations, or create your own application with simple drag‐and‐drop editing. For solvent evaporation, the VACUU SELECT controller detects solvent boiling and automatically adjusts the motor speed to maintain process control. The VARIO motor speed control provides whisper quiet operation and longer maintenance intervals. The glass inlet separator has a protective coating to prevent particles and liquid droplets from entering the pump to prevent damage and prolong service life. The exhaust vapor condenser allows for nearly complete recovery of solvents when used with a chilled water line or recirculating chiller for economical recycling and environmental protection.
- Model #: 20700203
Features:
- VACUU SELECT vacuum controller with graphic user interface and predefined applications
- Automatic boiling point detection and continuous optimization of vacuum levels for quick process times
- Compact and powerful ‐ superior performance even with continuous condensate purge
- Whisper quiet and ultra low vibration
- Eco‐friendly ‐ extremely low power consumption and efficient solvent recovery
- Oil‐free
- Pump completely mounted, ready for use, with manual
Technical Data:
- Number of heads / stages: 4 / 3 m3/h
- Max. pumping speed: 3.4 / 3.8 m3/h
- Max. pumping speed: 1.2 cfm
- Ultimate vacuum (abs.): 2.0 / 1.5 mbar/torr
- Ultim. vac. (abs.) with gas ballast: 4 / 4 mbar/torr
- Ambient temperature range (operation): 10 ‐ 40°C
- Ambient temperature range (storage): ‐10 ‐ 60°C
- Max. back pressure (abs.) 1.1 bar
- Inlet connection: Hose nozzle DN 6‐10 mm
- Outlet connection: Hose nozzle DN 8‐10 mm
- Rated motor power: 0.16 kW
- Motor speed range: 200 ‐ 3000 min‐1
- Degree of protection: IP 20
- Noise level at 50 Hz, type: 42 dBA
- ATEX conformity (only 230V): II 3/‐ G IIC T3 X Internal Atm. only
| Material | Plastic |
| Color | Grey |
| Each Length | 11.81 |
| Each Width | 12.05 |
| Each Height | 15.75 |
| Each Weight | 18.1 Pounds |
| Volts | 230V/50-60Hz |
| Hazmat | No |
| Oversize | No |
