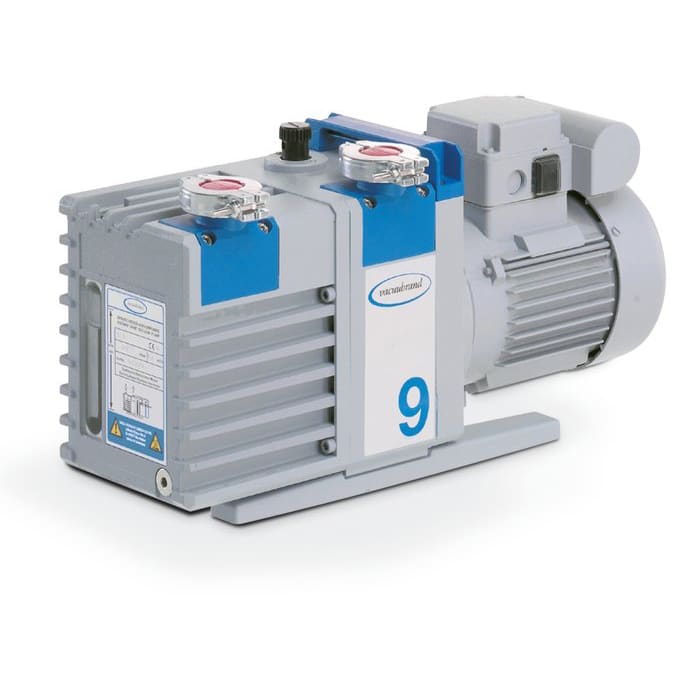

Vacuubrand 20698143 US Cord 120V/60Hz RZ 9 Rotary Vane Pump
Item #: 6092431Model #: 20698143Manufacturer: Vacuubrand
The powerful RZ 9 rotary vane pump are the ideal solution for a wide range of laboratory and process applications that require high pumping speed.
Price
Price Pending
Availability
Quantity
1
The powerful RZ 9 rotary vane pump are the ideal solution for a wide range of laboratory and process applications that require high pumping speed. The PC 3 rotary vane pumping unit, with the GKF 1000i cold trap at the inlet, helps the pump to handle large amounts of condensable vapors. The PC 3 pumping unit is compact, user‐friendly, and well‐arranged, with an oil mist filter at the outlet, a valve, and a T‐connection for a vacuum gauge.
- Model #: 20698143
Features:
- High flow rates even at vacuum levels approaching ultimate vacuum
- High water vapor tolerance due to efficient gas ballast; very good ultimate vacuum even with gas ballast
- Vacuum‐tight at switch‐off; external anti‐suckback valve not needed
- Large oil volume: Long intervals between oil changes
- Ease of maintenance due to telescopic design
- Includes pump oil filled and completely mounted, ready for use, with manual
Technical Data:
- Number of stages: 2
- Max. pumping speed at 50/60 Hz: 8.9 / 10.2 m3/h
- Max. pumping speed at 50/60 Hz: 5.2 / 6.0 cfm
- Water vapor tolerance with gas ballast: 40 mbar
- Ambient temperature range (operation): 10 ‐ 40°C
- Ambient temperature range (storage): ‐10 ‐ 60°C
- Oil capacity (B‐oil) 0.2 / 0.7 l
- Max. back pressure (abs.) 1.1 bar
- Inlet connection: Small flange KF DN 25m
- Outlet connection: Small flange KF DN 25
- Rated motor power: 0.37 kW
- Rated motor speed at 50/60 Hz: 1500 ‐ 1800 min‐1
- Degree of protection: IP 40
- Noise level at 50 Hz, type: 42 dBA
| Material | Plastic |
| Color | Grey |
| Each Length | 18.11 |
| Each Width | 5.98 |
| Each Height | 9.13 |
| Each Weight | 53.25 Pounds |
| Volts | 120/60/1 |
| Hazmat | No |
| Oversize | No |
