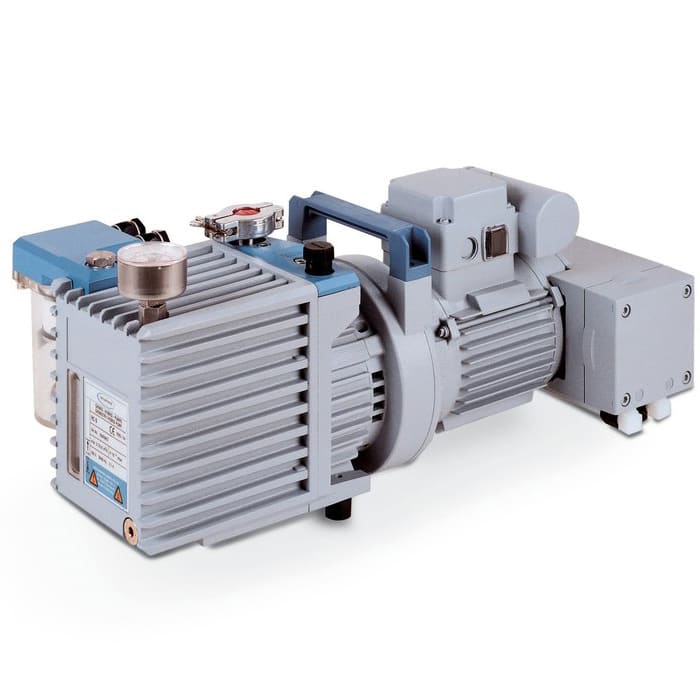

Vacuubrand 20698563 100-120V RC 6 Chemistry Hybrid Pump

Vacuubrand 20698563 100-120V RC 6 Chemistry Hybrid Pump


star_outlinestar_outlinestar_outlinestar_outlinestar_outline
starstarstarstarstar

Item #: 6092432Model #: 20698563Manufacturer: Vacuubrand

The RC 6 chemistry‐HYBRID pump is a combination of a two‐stage rotary vane pump and a two‐stage chemistry diaphragm pump for optimized corrosion resistance.

Price

Price Pending

Availability


Quantity

1

The RC 6 chemistry‐HYBRID pump is a combination of a two‐stage rotary vane pump and a two‐stage chemistry diaphragm pump for optimized corrosion resistance. The diaphragm pump maintains the oil reservoir under vacuum in order to keep the partial pressures of solvent vapors at levels below their condensation points and to reduce largely the concentration of oxygen and corrosive gases. Therefore the RC 6 chemistry‐HYBRID pump has a much higher solvent vapor pumping capability and resistance to aggressive gases than conventional rotary vane pumps.

  • Model #: 20698563

Features:

  • Reduced internal corrosion, even when working with corrosive vapors
  • Oil changes typically reduced 90% or more compared with rotary vane pumps alone
  • Excellent environmental friendliness due to efficient solvent recovery
  • Most economical solution: In practical operation a cold trap is often no longer necessary
  • Ease of maintenance due to telescopic design

    Technical Data:

    • Number of stages: 2 + 2
    • Max. pumping speed at 50/60 Hz: 5.9 / 6.9 m3/h
    • Max. pumping speed at 50/60 Hz: 3.5 / 4.1 cfm
    • Water vapor tolerance with gas ballast: 40 mbar
    • Ambient temperature range (operation): 10 ‐ 40°C
    • Ambient temperature range (storage): ‐10 ‐ 60°C
    • Oil capacity (B‐oil) 0.34 / 0.5 l
    • Max. back pressure (abs.) 1.1 bar
    • Inlet connection: Small flange KF DN 16
    • Outlet connection: Hose nozzle DN 8‐10 mm
    • Rated motor power: 0.37 kW
    • Rated motor speed at 50/60 Hz: 1500 ‐ 1800 min‐1
    • Degree of protection: IP 40
    • Noise level at 50 Hz, type: 50 dBA
