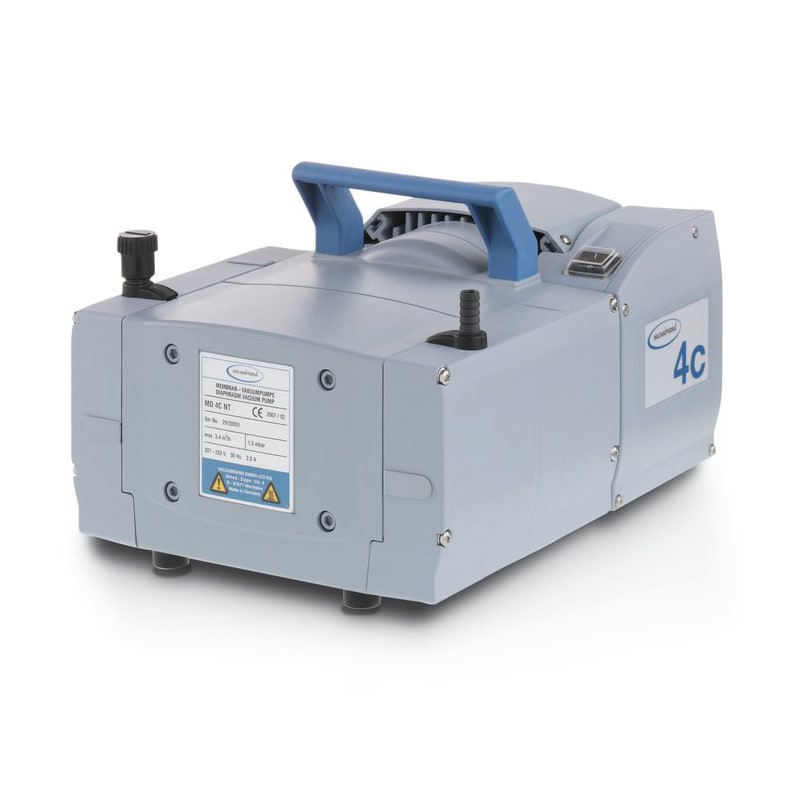

Vacuubrand 20736403 MD 4C NT Chemistry Diaphragm Pump

Vacuubrand 20736403 MD 4C NT Chemistry Diaphragm Pump


star_outlinestar_outlinestar_outlinestar_outlinestar_outline
starstarstarstarstar

Item #: 6092429Model #: 20736403Manufacturer: Vacuubrand

The Vacuubrand MD 4C NT three‐stage chemistry‐design diaphragm pumps are the perfect solution for continuous, oil‐free pumping of corrosive gases and vapors.

Price

Price Pending

Availability


Quantity

1

The Vacuubrand MD 4C NT three‐stage chemistry‐design diaphragm pumps are the perfect solution for continuous, oil‐free pumping of corrosive gases and vapors. The three‐stage design provides a combination of high pumping speed and very low ultimate vacuum. All parts that come in contact with pumped media are made of chemically resistant fluoroplastics. The PTFE sandwich diaphragms provide excellent reliability and a longer operating life. The MD 4C NT is also suitable for pumping condensable vapors of high‐boiling solvents and features further improved performance data, easy service and superior vapor tolerance.

  • Model #: 20736403

Features:

  • Outstanding chemical resistance and superior vapor tolerance
  • Exceptionally high performance even at low vacuum
  • Excellent ultimate vacuum even with gas ballast
  • Whisper quiet and very low vibration
  • Long diaphragm life, maintenance-free drive system
  • Includes: Pump completely mounted, ready for use, with manual
  • Accessories: Rubber vacuum tubing DN 8 mm (20686001)

Technical Data:

  • Number of heads / stages: 4 / 3
  • Max. pumping speed at 50/60 Hz: 3.4 / 3.8 m3/h
  • Max. pumping speed at 50/60 Hz: 2.0 / 2.2 cfm
  • Ultimate vacuum (abs.): 1.5 / 1.1 mbar/torr
  • Ultim. vac. (abs.) with gas ballast: 3 / 2.2 mbar/torr
  • Ambient temperature range (operation): 10 ‐ 40°C
  • Ambient temperature range (storage): ‐10 ‐ 60°C
  • Max. back pressure (abs.) 1.1 bar
  • Inlet connection: Hose nozzle DN 8‐10 mm
  • Outlet connection: Hose nozzle DN 8‐10 mm
  • Rated motor power: 0.25 kW
  • Rated motor speed at 50/60 Hz: 1500/1800 min‐1
  • Degree of protection: IP 40
  • Noise level at 50 Hz, type: 45 dBA
  • NRTL certification in Canada and the USA
  • ATEX conformity (only 230V): II 3&sol‐ G IIC T3 X Internal Atm. only
