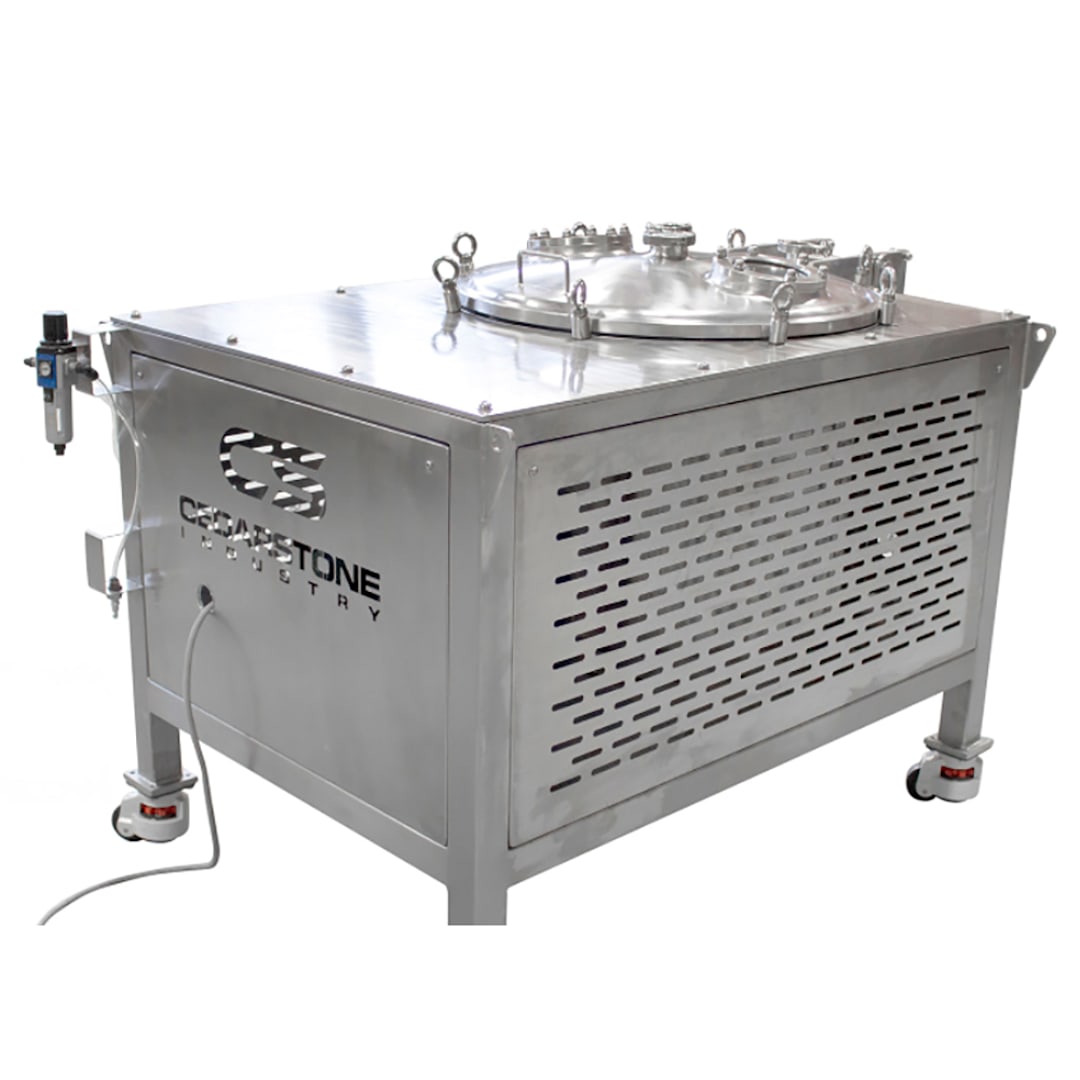

Cedarstone Ind SPINMATIC 250 15 HP Hemp/Cannabis Centrifuge Extractor

Cedarstone Industry centrifuge extractor machines are scientifically designed and manufactured for safe, high-speed operation. These centrifuge extractor machines are designed and developed based on low-temperature ethanol and hemp extraction processes. They are easy to operate and easy to maintain.

• Model #: SPINMATIC 250
• UL listed Class 1 Division 1 Explosive Proof Control Panel
• Compliance with the latest standards, directives, and GMP requirements
• Complete modular design delivery; no need for on-site installation
• Motor and transmission parts are enclosed to ensure safe operation
• Advanced control system and HMI operation interface to achieve single operation
• Explosive proof motor from Toshiba( or equivalent)
• Siemens PLC and touch screen
• Optimize design to allow temperature extraction at -60° C
• Reasonable sealing structure design to achieve reliable sealing of bearing
• 316L material, EPDM food-grade seal
• Sanitary design
• Automatic valve can be configured to realize automatic control of feeding and discharging
• Outer stationary barrel has a cooling jacket
• Fully adjustable agitation speed and time setting
• Capacity 8hr/Day: Max 1000 pounds
• Average batch running time: 20 - 30 minutes
• Blomass requirements: Max 70 lbs
• Ethanol requirements: 1:4 (by weight)
• Motor power: 15hp
• Voltage and frequency: 460V/60 Hz
• Inlet/Outlet: 2" TC
