CO2Meter RAD-0501 Day / Night CO2 Greenhouse Controller

CO2Meter RAD-0501 Day / Night CO2 Greenhouse Controller


star_outlinestar_outlinestar_outlinestar_outlinestar_outline
starstarstarstarstar

Item #: 6084037Model #: RAD-0501Manufacturer: CO2Meter

The CO2Meter Day/Night CO2 Controller are great for use in greenhouses, grow rooms, hydroponics rooms, and other places where elevated carbon dioxide levels are used to maximize plant growth.

Price

Price Pending

Availability


Quantity

1

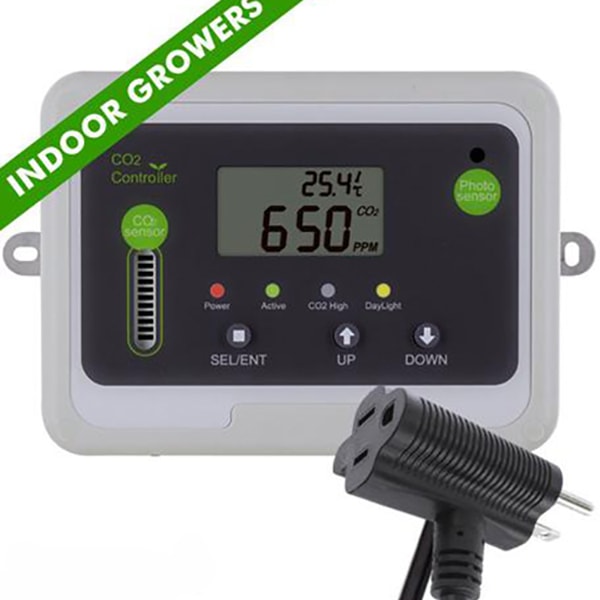

The CO2Meter Day/Night CO2 Controller are great for use in greenhouses, grow rooms, hydroponics rooms, and other places where elevated carbon dioxide levels are used to maximize plant growth. It allows you set high and low target CO2 levels using advanced hysteresis logic. The CO2 Monitor & Controller has a built‐in photo sensor that overrides the CO2 control and shuts off the CO2 when it senses darkness. Most importantly, it is easy to use and install.

  • Model #: RAD‐0501

Features:

  • Large digital LCD display clearly indicates the current CO2 level and temperature
  • Easy to read display with all functions set from 3 push buttons
  • Power, upper limit, lower limit and photo sensor verification LEDs
  • Non‐UV Emitting LED's ‐ no interference with the grow cycle
  • IP54 Enclosure ‐ cover during cleaning, fertilization, or wash‐down
  • Default settings: Low Set Point ‐ 800 ppm. High Set Point ‐ 1,500 ppm
  • Measurement Range: 0‐10,000ppm
  • NDIR CO2 Sensing Technology
  • Accuracy: ± 70ppm or ± 5% CO2
  • Sensor Response Time: < 2 minutes
  • Operating Temperature: 32° to 122° F
  • Calibration: In‐situ with fresh air
  • Sensor Life Expectancy: 15 years
  • Relay: One Relay output, Peak Current < 5A @ 250 VAC, SPST. Normally Open
  • Max Coverage Area: 1,500 sq. ft. with proper air handling
  • Power: 110VAC Grounded US Plug Only
  • Power Consumption: 2 Watts Maximum
  • Piggyback Cable: Peak Current < 5A @ 250 VAC
